Every natural gas pipeline job runs into the same three questions: how deep does the pipe have to sit, how far must it stay from other buried services, and how much clearance does it need once it comes above ground? This page collects the metric answers into one reference — six tables covering burial depth, horizontal separation, indoor routing, meter siting and flexible connections — so a route can be checked without cross-reading half a dozen documents.
Key takeaways
- Minimum cover is 1.0 m under vehicle roadways, 0.7 m under non-vehicle areas such as sidewalks, 0.6 m where vehicles cannot reach and 0.9 m under irrigated fields.
- Horizontal separation runs from 5.0 m to buildings, 1.0 m to water mains, 1.5 m to sewers, 1.0 m to power cables and 0.5 m between two gas lines.
- Indoors, gas pipe runs on the surface with a 0.003 slope toward the riser, held 30 / 50 / 70 mm off the wall by diameter.
- Any reduction below these numbers needs engineered protection and written approval — not field judgement.
Burial Depth: How Much Cover Does a Buried Gas Line Need?
Cover depth is set by the load above the pipe rather than by the pipe itself. A line under a loaded haul road sees vehicle wheel loads transmitted through the pavement; a line under a garden sees almost nothing. The table below gives the minimum distance from finished surface to pipe top by location class.
| Installation location | Minimum cover (m) | Why this value |
|---|---|---|
| Under vehicle roadways | ≥ 1.0 | Wheel loads and future resurfacing |
| Under non-vehicle areas, including sidewalks | ≥ 0.7 | Pedestrian and light maintenance traffic |
| Areas inaccessible to vehicles | ≥ 0.6 | Protected or restricted access |
| Under irrigated fields and rice paddies | ≥ 0.9 | Cultivation depth plus soil settlement |
Two conditions are routinely missed. First, cover is measured to finished grade, not to the bottom of the excavation — a line backfilled before paving is installed often ends up 150 mm shallower than the drawing says. Second, where a concrete slab, load-spreading plate or steel casing is placed over the pipe, the cover requirement may be reduced, but only with that protection designed and recorded. Reduction without protection is the single most common cause of third-party strike on distribution mains.
Horizontal Clearance Between a Gas Pipeline and Other Utilities
Separation between buried services protects three things at once: the gas line from corrosion cells and stray current, the neighbouring utility from gas migration, and the excavation crew that has to dig one trench without cutting the other.
| Adjacent infrastructure | Minimum horizontal distance (m) | Design reason |
|---|---|---|
| Buildings and structures | 5.0 | Foundation clearance, venting of any leak |
| Water supply pipelines | 1.0 | Cross-contamination prevention |
| Sewage pipelines | 1.5 | Sulphide attack on the pipe coating |
| Power cables | 1.0 | Stray-current corrosion, arc damage during excavation |
| Telecommunication cables | 0.5 | Signal integrity, cathodic protection interference |
| Other gas pipelines | 0.5 | Maintenance access, isolation of a single line |
| Storm drainage | 1.0 | Water infiltration and bedding washout |
Where ground conditions make the standard separation impossible — a narrow urban corridor, an existing utility cluster, a rock interface — the clearances may be reduced after consultation with the affected utility owners and with protective measures in place: a sleeved crossing, a coated and wrapped section, a concrete separation slab or an insulating barrier. What is never acceptable is reducing the gap and leaving it as built.

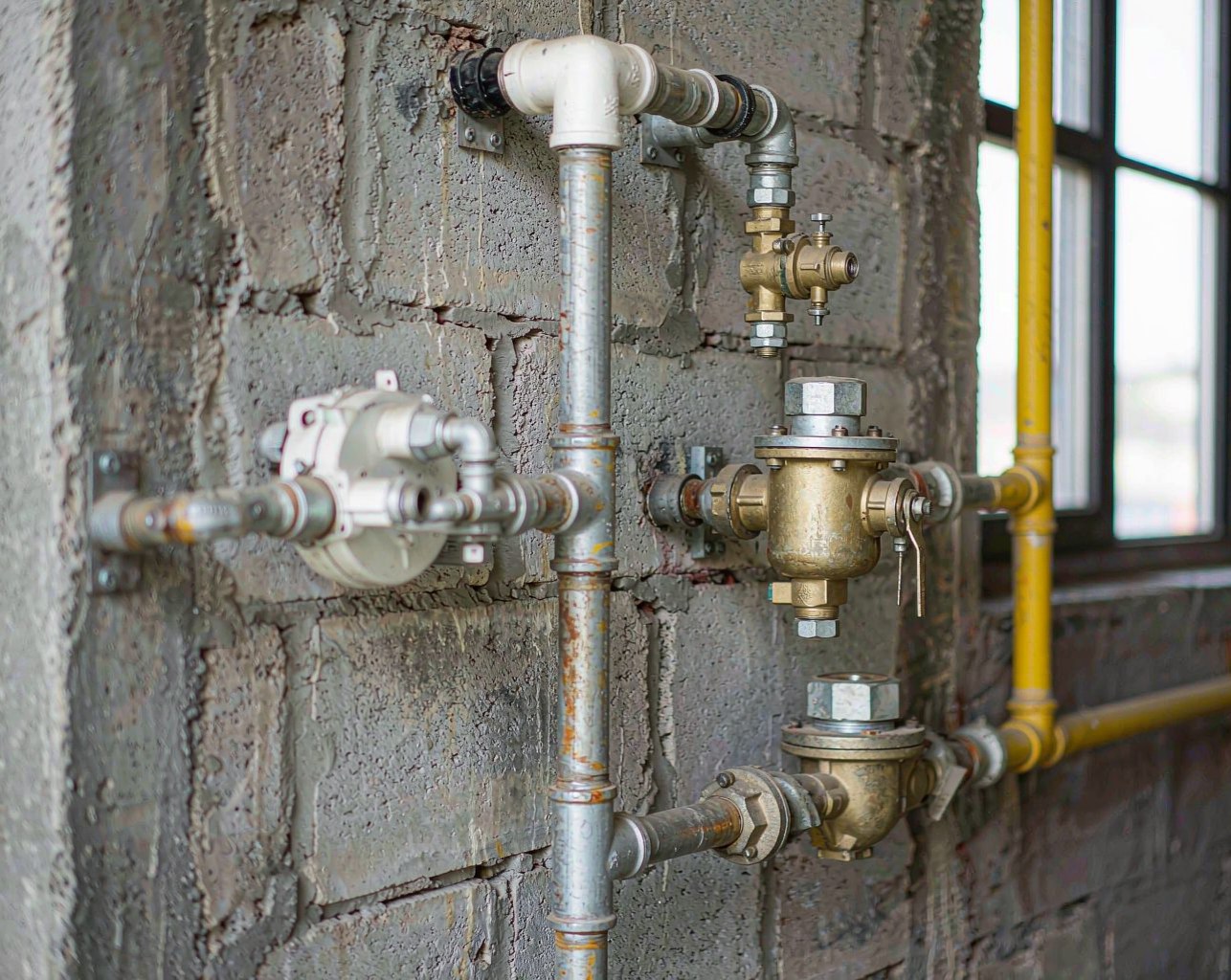

Above-Ground and Indoor Gas Piping Rules
Once the line leaves the ground, the governing risk changes from external load to accumulation. Gas released indoors pools at low level or, in a confined riser shaft, travels between floors. Indoor routing rules are written around that behaviour.
Where pipe may not be installed
Indoor gas piping is prohibited in flammable or explosive storage areas, warehouses, electrical distribution rooms, transformer rooms, cable trenches, flues and air ducts. The reason is not only ignition — a duct or flue gives leaked gas a path to every floor of the building in minutes.
Surface mounting, trenches and slope
Pipe should be surface-mounted. Where building or process requirements demand otherwise, installation inside covered and ventilated channels, trenches, equipment floors or removable ceiling voids is permitted, provided the void is ventilated at both ends. Horizontal runs need a 0.003 slope toward the vertical riser or appliance so that any condensate or debris travels to a drain point instead of sitting in the line. Reverse slopes and sagging low points are prohibited, and runs must be aligned both horizontally and vertically.
Parallel, vertical and crossing clearances
| Configuration | Minimum clearance | Application |
|---|---|---|
| Horizontal, parallel to another service | ≥ 100 mm | Side-by-side utility runs |
| Vertical, parallel | ≥ 50 mm | Stacked configurations |
| Crossing | ≥ 10 mm | Pipeline intersections |
Wall, Riser and Appliance Clearances
Clearance from the wall is a function of diameter because it has to accommodate a pipe wrench, insulation and thermal movement, not just the pipe body.
| Nominal pipe size | Wall clearance | Typical use |
|---|---|---|
| < 25 mm | ≥ 30 mm | Small-diameter residential branch |
| 25–50 mm | ≥ 50 mm | Service lines |
| > 50 mm | ≥ 70 mm | Distribution risers and headers |
Risers, corners and electrical separation
A riser at an internal wall corner needs at least 300 mm of projection from the finished corner, and at least 200 mm clear of a sink or basin. Electrical separation is stricter than most installers expect: 300 mm from distribution boards, 100 mm from switches and sockets, 30 mm at a crossing. Those numbers exist because a gas leak inside a wall cavity will find the nearest electrical enclosure.
Multiple appliances
Branch piping feeding more than one appliance requires at least 900 mm between connection points, so that each appliance can be isolated and removed without disturbing its neighbour.
Gas Meter Installation and Safety Distances
Meter siting is the decision that fixes the rest of the layout. Get the meter in the wrong place and every downstream clearance becomes a compromise.
Location selection
Meters go close to the main and branch lines, in a position that allows construction, maintenance, adjustment and reading without ladders or keys. Large meters installed indoors need a well-ventilated area or a dedicated room with permanent low-level and high-level ventilation; outdoor installations need weather protection that does not seal the case.
Prohibited locations
Gas meters are prohibited in bedrooms, bathrooms, changing rooms, toilets, flammable storage areas, restricted-access areas, corrosive environments, basements, boiler rooms, and anywhere the ambient temperature falls below 5 °C or rises above 40 °C. The temperature limits are practical rather than theoretical: below 5 °C the meter’s internal seals stiffen, above 40 °C the diaphragm ages rapidly and reading drift begins.
| Adjacent equipment or structure | Minimum distance | Safety consideration |
|---|---|---|
| Electrical equipment | ≥ 0.6 m | Removes an ignition source from the meter vent path |
| Stove counter edge | ≥ 0.3 m | Heat and flame exposure |
| Coal or solid-fuel stove (vertical) | ≥ 1.0 m | Radiant heat and flue gases |
| Adjacent gas meters | ≥ 0.15 m | Service access and isolation |
| Above a gas stove | ≥ 0.3 m horizontal | Keeps the meter out of the plume |
Water Heaters, Boilers and Pressure Regulator Stations
Gas water heater installation
The bottom of the unit sits at least 1.2 m above the floor, with the viewing port at eye level — typically 1.2–1.5 m. The room needs a clear height of at least 2.4 m, permanent natural ventilation, no electrical wiring above the unit, and 1 m clearance to the opposite wall. Keep 300 mm from meters, stoves and electrical equipment, and vent the flue properly; an unvented heater in a small room is a carbon monoxide source, not a heater.
Pressure regulator stations
Regulator stations may sit along roadways, inside neighbourhoods, on squares or in green space, but must avoid busy urban frontages and maintain distance from open flame. Acceptable configurations are a separate building at ground level, an above-ground enclosure where permitted, or a below-ground installation for medium- and low-pressure service with enhanced safety measures. Every station needs filtration at the regulator inlet, a vent pipe terminating at least 4 m above ground, and fire-rated separation where the station adjoins an occupied structure.
Valves and Flexible Connections
Where isolation valves are required
Valves must be reachable during an emergency, which means they belong at defined points rather than wherever the fitter finds space. The required locations are:
- Before each gas meter, for service isolation
- Before every appliance and burner, for safety control
- Before ignition devices and test points, for maintenance
- Before vent piping, for system protection
- On the service entrance line, for emergency shut-off
- On both banks of a river or canal crossing, for emergency isolation
Flexible connections
| Application | Maximum length | Joints permitted |
|---|---|---|
| Household gas stoves | ≤ 2 m | None |
| Laboratory burners | ≤ 2 m | None |
| Industrial mobile equipment | ≤ 30 m | 2 maximum |
Use oil-resistant rubber hose only, secure both ends with compression nuts or clamps, and never route a flexible connector through a wall, window or door — abrasion at the penetration is how most hose failures start. Flexible connectors are consumables: they need a defined inspection and replacement interval, not a “replace when it leaks” policy.
Where the Pipe Itself Comes From
Spacing rules describe where the pipe may go; the pipe still has to survive the service. For distribution mains and transmission lines, the material decision usually comes down to the product specification behind the pipe: line pipe to API 5L PSL1 or PSL2 with the right steel grade, casing and tubing to API 5CT where the line enters a well, and corrosion-resistant alloys where the gas carries CO₂ or H₂S. External coating and cathodic protection handle the soil side; see pipeline external and internal corrosion protection for the coating systems that pair with the depths above. Once the line is in service, the wall loss those systems are meant to prevent is found from the inside rather than the surface — see long-distance pipeline inspection methods.
Where the gas is wet or sour, the wall thickness chosen for pressure may not be the wall thickness that survives the environment — a point covered in pipeline anti-corrosion coating research and in the grade data for 13Cr CRA casing and tubing. For low-temperature service, impact-tested low-temperature casing pipe avoids the brittle-fracture failure mode that a standard grade will show at −20 °C and below.
Frequently Asked Questions
How deep should a natural gas pipeline be buried?
Minimum cover is 1.0 m under vehicle roadways, 0.7 m under sidewalks and other non-vehicle areas, 0.6 m where vehicles cannot reach, and 0.9 m under irrigated farmland. Cover is measured from finished grade to the top of the pipe, after backfill and any paving.
What is the minimum distance between a gas pipe and a water pipe?
1.0 m horizontally for parallel runs, and 1.5 m from a sewer line. Where a crossing is unavoidable, keep the gas line above the water line with a sleeved or wrapped separation, and never allow direct metal-to-metal contact.
Can gas pipe be buried in a wall or cast into concrete?
No. Indoor gas piping is surface-mounted or run in a ventilated chase that can be inspected. Casting a gas line into concrete or burying it inside a wall removes the ability to detect a leak and makes repair destructive.
How much clearance does a gas meter need?
At least 0.6 m from electrical equipment, 0.3 m from a stove counter edge or from above a stove, 1.0 m vertically from a solid-fuel stove, and 0.15 m from an adjacent meter. Meters must not be installed in bedrooms, bathrooms, basements or boiler rooms.
Do these clearances apply to transmission pipelines as well as distribution mains?
Not directly. The tables above reflect distribution and building-service practice. Transmission lines are designed against pipeline codes with wall-thickness, burial and separation requirements set by the operating pressure, population density along the route and the applicable national standard. The principles are the same; the numbers are not.
