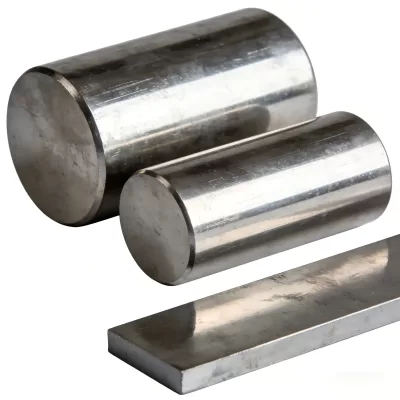

AISI 4150 Steel Round Bar – High Strength Oil & Gas Grade
Executive Summary
AISI 4150 represents the premium tier of chrome-molybdenum alloy steels engineered for severe oilfield environments. This high-carbon variant delivers exceptional hardenability and fatigue resistance, making it the preferred choice for critical drilling components operating under extreme downhole conditions. SHUNFU METAL supplies AISI 4150 in API 6A/7-1 compliant condition with guaranteed NACE MR0175 sour service capability.
Our manufacturing process ensures complete Q+T (Quenched & Tempered) heat treatment with precise hardness control at 22 HRC maximum to prevent sulfide stress cracking. Available in rolled, forged, and rough-turned conditions with full UT inspection per ASTM A388 Class C/c standards. Check our hollow bar inventory for immediate availability of premium oilfield grades.
Critical Standards & Material Equivalents
International Standards
- ASTM A29/A29M: Standard Specification for General Requirements
- AISI 4150: Chrome-Molybdenum Steel
- DIN 1.7220 (42CrMo4): European Equivalent
- JIS SCM440: Japanese Standard
Oilfield Compliance
- API Spec 7-1: Drill String Components
- API 6A: Wellhead & Christmas Tree Equipment
- NACE MR0175/ISO 15156: Sour Service Environment
- API 5CT: Casing & Tubing Applications
Technical Specifications
Chemical Composition (Ladle Analysis)
| Element | Min % | Max % | SHUNFU Control | Impact on Properties |
|---|---|---|---|---|
| Carbon (C) | 0.48 | 0.53 | 0.50±0.02 | High strength, hardenability |
| Manganese (Mn) | 0.75 | 1.00 | 0.85±0.05 | Deoxidation, strength |
| Chromium (Cr) | 0.80 | 1.10 | 0.95±0.05 | Hardenability, wear resistance |
| Molybdenum (Mo) | 0.15 | 0.25 | 0.20±0.02 | Deep hardening, temper resistance |
| Sulfur (S) | – | 0.040 | ≤0.010 | SSC resistance critical |
| Phosphorus (P) | – | 0.035 | ≤0.010 | Improved toughness |
Mechanical Properties (Q+T Condition)
| Property | Specification | SHUNFU Guarantee | Test Method |
|---|---|---|---|
| Yield Strength | 655 MPa (95 ksi) min | 655-795 MPa | ASTM A370 |
| Tensile Strength | 850 MPa (125 ksi) min | 850-1000 MPa | ASTM A370 |
| Elongation | 12% min | 15% typical | ASTM A370 |
| Reduction of Area | 35% min | 45% typical | ASTM A370 |
| Hardness | 22 HRC max (NACE) | 19-22 HRC | ASTM E18 |
| Charpy Impact (-46°C) | 20 J min | 25 J typical | ASTM E23 |
Manufacturing Excellence & Quality Control
Forging Process
Minimum 4:1 forging ratio ensures complete grain refinement and elimination of center porosity. Our press forging capability extends to 600mm diameter with uniform deformation throughout the cross-section. Directional grain flow optimizes fatigue resistance in drilling applications.
Heat Treatment Precision
Computer-controlled quenching at 850°C followed by tempering at 600-650°C achieves optimal strength-toughness balance. Furnace atmosphere control prevents decarburization. Through-hardening capability to 200mm diameter with ±2 HRC uniformity guarantee.
NDT Inspection Protocol
100% ultrasonic testing per ASTM A388 Class C/c standard. ShunFu manufacturing capabilities include advanced UT equipment with 2mm FBH sensitivity. Magnetic particle inspection per ASTM E1444 for surface integrity verification.
Microstructural Control
| Parameter | Standard | SHUNFU Achievement |
|---|---|---|
| Grain Size | ASTM E112 Grade 5 or finer | Grade 6-7 typical |
| Inclusion Rating | ASTM E45 Method A | Type A: 1.5 max, Type B: 1.0 max |
| Decarburization | ASTM A1077 | Complete absence verified |
| Banding | ASTM A322 | Rating 2 maximum |
Value-Added Processing Services
Precision Machining Capabilities
SHUNFU operates dedicated machining centers for oilfield components with the following capabilities:
- BTA Deep Hole Boring: Up to 6000mm length, 25-400mm bore diameter with ±0.05mm tolerance
- CNC Rough Turning: Optimized surface finish for UT inspection, Ra 12.5μm standard
- Gun Drilling: Precision tool joint connections and fluid passages
- Heat Treatment Integration: In-house Q+T eliminates transportation risks and dimensional control
Critical Applications in Oil & Gas Operations
Drilling Equipment
- Heavy Weight Drill Pipe (HWDP) tool joints
- Drill collar connections and bodies
- Stabilizer blades and sleeves
- Rotary steerable components
Wellhead Systems
- Christmas tree valve blocks
- Wellhead housing bodies
- High-pressure flanges and fittings
- Choke and kill line components
Subsea Applications
- BOP stack components
- Riser connection hardware
- Manifold valve bodies
- Umbilical termination assemblies
Sour Service Performance
AISI 4150 in Q+T condition with controlled hardness demonstrates superior resistance to sulfide stress cracking (SSC) and hydrogen induced cracking (HIC). Laboratory testing confirms compliance with NACE TM0177 Method A at 22 HRC hardness level. Critical for H2S environments exceeding 0.05 psia partial pressure.
Available Size Ranges & Delivery Conditions
| Product Form | Diameter Range | Length | Surface Condition | Standard Delivery |
|---|---|---|---|---|
| Hot Rolled Bars | 16-150mm | 6-12m | Black/Descaled | Normalized + Tempered |
| Forged Rounds | 80-600mm | 1-6m | Machined/UT Tested | Q+T Condition |
| Rough Turned | 100-500mm | 2-6m | Ra 12.5μm | Q+T + UT Class C/c |
| Hollow Bars | 150-400mm OD | 2-6m | BTA Bored | Q+T + Full Inspection |
Special Tolerances Available
- Diameter: ±0.5mm for rough turned, ±0.1mm for finish machined
- Length: +25mm/-0mm standard, closer tolerance on request
- Straightness: 1.5mm/meter maximum deviation
- Concentricity: 0.5mm TIR for hollow bars
Frequently Asked Questions
Material Certification & Testing
Q: What certificates do you provide with AISI 4150 deliveries?
A: Every shipment includes EN 10204 3.1 Mill Test Certificate with complete chemical analysis, mechanical properties, and heat treatment details. Third-party inspection available through SGS, BV, or customer-specified agencies.
Q: Can you guarantee NACE compliance for sour service?
A: Absolutely. Our Q+T process maintains 22 HRC maximum hardness with documented SSC testing per NACE TM0177. S and P content controlled to 0.010% maximum ensures optimal sour service performance.
Q: What is your UT inspection capability?
A: We perform 100% UT per ASTM A388 with Class C/c sensitivity (2mm FBH). Advanced equipment includes automated scanning systems with permanent recording capability for critical applications.
Processing & Delivery
Q: Do you stock AISI 4150 or manufacture to order?
A: We maintain strategic inventory of popular sizes in Q+T condition. Custom sizes typically require 4-6 weeks for forging and heat treatment. Contact our sales team for current stock availability.
Q: Can you provide machining services?
A: Yes, our in-house machining centers handle rough turning, BTA boring, and precision operations. This integration ensures traceability and eliminates risks associated with external processing.
